    Vape CDI Ignition and Charging System for the Yamaha RD250/350/400,R5, and DS7

    (note: Vape was formerly Powerdynamo/MZB)

    • Replaces the stock generator, points, condenser, coils and regulator found on the RD, R5 and DS7.
    • This system includes a lightweight cnc machined one piece external magnetic rotor and powerful stator, CDI ignition and HT coil pack, regulator, plug wires and caps, misc hardware and installation instructions. (note: all new systems purchased include the updated rotor)
    • This is the same type of ignition you would find on any modern motorcycle and gives you a high voltage spark and strong electrical output for lighting and charging. This is a maintenance free system, you will never need to check your timing or replace / adjust any parts as you would with contact points and condensers.
    • We charge a bit more than other vendors for this system as we provide live technical support via phone - talk to a person.
    • 24 Month Manufacturer’s Warranty.
    • 35,000 Volt HT Ignition Coils
    • Electrical output at 150W/12V allows you to run high wattage lights, halogen bulbs, and any accessories you like. Your horn, signals and headlight will be strong and bright even at idle.
    • No changes, modifications or machining needed to install this system
    • The system is capable of running without a battery.
    • Very stable ignition with high energy spark for better starting and fuel efficiency
    • Increases engine performance and lowers emissions
    • Wasted spark system ensures easy starting
    • This system is manufactured to exacting standards and all components and machining are top notch and of the highest quality. Just what you would expect from a German company.
    • Manufactured by Vape, imported from Europe by Economy Cycle – an authorized US distributor.
    • You will need a basic understanding of motorcycle electrical systems and basic mechanical knowledge to install the system, or you can have your own mechanic or local bike shop perform the installation. Economy Cycle can also install this system on your bike or motor.
    • The system typically takes 3-4 hours to install.
    • Note: requires puller tool for Vape Rotor/drum - available here Vape Puller Tool
    • We recommend the hardware upgrade kit for this system - available here Vape Hardware Upgrade
    • We also recommend a new generator wire grommet with this kit as the stock one will not be reuseable, avaiable here Wiring Grommet
    • Kit includes a relay to allow you to use your stock ignition switch
    • Some notes on keyway cutting and woodruff keys:
    • This system does not require a keyway / woodruff key and allows you to run the static timing of your choice (typically RD’s and similar bikes run static timing in the range of  1.8-2.2 BTDC). Also if you intend to use a Zeeltronic ignition controller and dynamic ignition curve a keyed rotor timed in the typical range noted above will not allow the Zeeltronic ignition controller to work properly, additional info below.
    • Cutting a keyway in the rotor/drum voids the warranty
    • The original Yamaha keeway and woodruff key were not intended to be used with the Vape rotor/drum to keep from slipping and absorbing a shear load. They were designed to index timing and once a keeway is cut and woodruff key installed, your timing is fixed and cannot be changed, we don't recommend this modification for these reasons. Additional info from Vape/MZB/Powerdynamo here Vape Keyway Information
    • Requires no battery or lead acid / MF type battery only, however you will need a battery if you intend to use the stock ignition switch and kill switch and Vape relay
    You can combine this Vape CDI system with a fully programmable Ignition Controller from Zeeltronic to enable a dynamic timing curve and rev limiter. These components are offered here on the website in the Zeeltronic programmable ignition controller category. This programmable system is offered exclusively by Economy Cycle.
  • Vape CDI Racing Ignition for Yamaha RD350/RD400/R5/DS7.

    This high performance system is designed to be lightweight, high revving, and provide a stable high voltage spark across the rev range.
    • High speed lightweight internal rotor offers up to 22K max rpm's
    • Stable high voltage spark - System provides stable 40 kilovolt spark from 3000-8000 rpms. At 18000 rpm or 36.000 sparks per minute, this system still maintains a stable 25 Kilovolt output.
    • Diameter of rotor is 59mm, rotor weight is 180 grams.
    • Total system weight is 850 grams
    • Note: Race only total loss ignition, no generator for charging or lights
    • Very simple install includes documentation, assembly instructions and wiring diagram
    • 24 mos. Warranty

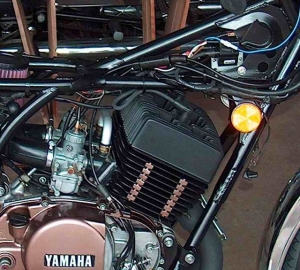

    This system is manufactured to exacting standards and all components and machining are of the highest quality. Exactly what you'd expect from a German company. Manufactured by Vape, formerly Powerdynamo/MZB. Economy Cycle - authorized US distributor / re-seller. You will need a basic understanding of motorcycle electrical systems and basic mechanical knowledge to install this system or you can have your own mechanic or local bike shop perform the installation. The system takes 3-4 hours to install and includes instructions, pictures and diagrams. Race iggy parts installed  52sport  output
